SCADA · PPC · EMS integration for renewable and hybrid plants
Lapomik Energy is a SCADA integrator for solar, storage, hybrid and mini-grid plants. We engineer, validate and commission the plant control system, then give operators one platform — VETRA — to monitor, control and aggregate every asset, whatever the OEM.
Every OEM ships a controller for its own equipment. A plant needs one system above them all. VETRA is that system — it monitors, controls and aggregates — and we integrate, test and support it as a documented engineering scope.
Real-time telemetry, alarm management designed to align with ISA-18.2, historian and reporting, HMI screens built on ISA-101 principles, availability and performance ratio per plant and per fleet.
Power plant control at the point of interconnection — active and reactive power, voltage, frequency, ramp rates — and hybrid EMS dispatch across PV, storage, gensets and grid, including islanding and black start. Protection and interlocks stay in the relays.
One normalised data model across OEMs and sites: fleet KPIs, contracted-performance tracking and northbound interfaces to utilities, owners and lenders over IEC 60870-5-104, DNP3, OPC UA, MQTT and REST.
Simulation-based validation, factory and site acceptance, grid-compliance testing, OT cybersecurity designed to align with IEC 62443, and a documentation package the owner can audit.
VETRA product family
VETRA runs hybrid power — PV, battery storage, gensets and grid — from the first map to the final kilowatt-hour paid. Every site carries one VETRA Project ID across planning, finance, procurement, operation and settlement, so the data that sized a plant is the data that settles it.
M01 · PLANVETRA AtlasGeospatial planning, least-cost sizing, pipeline and application management.EXPLORE →
M02 · FINANCEVETRA CapitalProject finance, RBF and grants, tenders and RFPs, milestone disbursements, investor returns.EXPLORE →
M03 · PROCUREVETRA SourceSourcing, purchase orders, supply-chain credit, delivery tracking, cost control.EXPLORE →
M04 · OPERATEVETRA SCADAReal-time monitoring, PPC and EMS control, verified data — runs the eight site controllers.EXPLORE →
M05 · SETTLEVETRA LedgerPortfolio reporting, metered billing, verified settlement per kWh.EXPLORE →
LAPOMIK CNG · GASLapomik CNGVehicle conversion centre and CNG station development in Port Harcourt — cars, keke, buses and fleets.EXPLORE →
Images are illustrative renders. The eight site controllers are on Hybrid Control.
Local engineering, international standards, and control systems designed for weak grids, harsh environments and fuel-constrained sites.
In Nigeria, a Port Harcourt engineering team that understands emerging energy markets, working to international IEC standards so the result is both reliable and compliant.
VETRA integrates with any inverter, battery, genset, meter or relay. No black-box lock-in: you own your data, your logic and your future.
Power plant control designed to meet grid codes and utility requirements, validated in simulation before it reaches the point of interconnection.
Diesel displacement, emissions avoided and generator runtime captured automatically, supporting Verra- and Gold-Standard-aligned reporting workflows.
Islanding, black start and offline-first operation for sites with intermittent grid and connectivity.
Controlled documentation, signed test records and investor-grade data that keep a project financeable after commissioning.
Engineering services — for plants you build, own or operate
We design, model, program, test and commission the Power Plant Controller, Energy Management System and SCADA for PV, battery, genset and grid-connected plants — on your equipment, to your specification, as your controls partner. Each service can be bought alone or combined, and each is delivered as documents, models, code and test records your own team can own afterwards.
SERVICE 01 · GRID-CODE CONTROLPower Plant ControllerActive and reactive power, voltage, frequency and ramp rate held at the point of connection — from 100 kW C&I sites to 50 MW+ plants.FULL SCOPE →
SERVICE 02 · DISPATCHEnergy Management SystemDispatch that decides, every second, how PV, batteries, gensets and grid share the load — with safe islanding and black start.FULL SCOPE →
SERVICE 03 · SUPERVISION & DATASCADA & HMIEvery OEM device on one data model, one screen and one record — with OT security and Owner's Engineer review.FULL SCOPE →For EPCs, IPPs, OEMs, integrators, utilities, developers and owners. Vendor-neutral: we sit above the OEM controllers and do not resell their equipment.
The gap we close
Most hybrid plants are built by an EPC that buys from four or five OEMs. Each OEM controls its own equipment well. Nobody owns the plant-level control. These are the problems that reach us.
Inverters, batteries and gensets each follow their own setpoints. Nothing coordinates them at the point of connection, so the grid operator sees a plant that cannot hold its power or voltage targets.
Compliance is claimed from OEM datasheets. No model, no study and no test record exists for the plant as built, and the connection agreement stalls.
Gensets and switchgear are tied to the inverter controller through relay contacts. The EMS cannot see fuel, load or state, so it over-runs diesel and under-uses storage.
Each vendor's cloud shows its own device. There is no single historian, no plant-wide alarm list and no data a lender or off-taker can rely on.
Control logic lives in one vendor's locked configuration. When the vendor leaves, the plant cannot be changed, and the owner cannot prove how it behaves.
Control strategies are tried for the first time with real equipment, real customers and a live grid. Faults found that way are expensive and slow to fix.
| Who | What you bring | What we deliver |
|---|---|---|
| EPC contractors | A plant to build, equipment already selected, a grid-connection deadline. | The PPC, EMS and SCADA scope of the EPC contract, delivered as a subcontract with your schedule and your document numbering. |
| IPPs and plant owners | A plant in development or in operation, a PPA and a lender. | A control layer you own, with the models and records the lender and grid operator ask for. |
| OEMs and integrators | Inverters, batteries or gensets to sell into hybrid projects. | Plant-level control and SCADA that make your equipment work with everyone else's, built to your specification. |
| Utilities and grid operators | Connection rules and a queue of plants to approve. | Independent compliance models, studies and test evidence for the plants connecting to your network. |
| Developers and funders | A portfolio of mini-grids and C&I sites. | One control and data standard across the portfolio, so every site reports the same way. |
| Engineering firms | Peaks of controls work you cannot staff. | An engineering pod that works in your tools, under your QA, by the month. |
The full control-system scope of a renewable or hybrid plant, delivered as engineered packages with acceptance criteria — whether we are the SCADA contractor to an EPC, the integrator for an owner, or the independent engineer for a lender.
System architecture, redundant servers, HMI and historian, tag database and I/O lists, device integration across every OEM on site. Full scope →
Grid-code control at the point of interconnection: P/Q/V/f setpoints, ramp-rate and curtailment logic, utility interface and compliance testing. Full scope →
Cost- and reliability-based dispatch of PV, storage, gensets and grid; state-of-charge management, fuel-saving modes, islanding and black start. Full scope →
IEC 61850 integration with protection relays and switchgear; IEC 60870-5-104 and DNP3 links to system operators; RTU and gateway engineering.
Fibre, radio and LTE designs, ring topologies, managed switching and segmentation sized for sites with intermittent connectivity.
Zones and conduits, hardened remote access, monitoring, backup and incident response — designed to align with IEC 62443 and IEC 62351.
Control logic proven against simulated faults, outages and grid events before it reaches site.
Factory and site acceptance with signed records, performance validation, grid-compliance tests and structured handover.
Replace or upgrade an OEM or end-of-life SCADA, add a PPC or EMS to an operating plant, add genset monitoring — without stopping production.
Remote Operations Centre supervision for single plants and fleets, Level 1 and Level 2 support, preventive and corrective maintenance.
Independent review of SCADA, PPC, EMS, network and cybersecurity packages, vendor submittals and test procedures for owners and lenders.
Operator and engineer training on a live hybrid plant in Port Harcourt, plus project-specific handover training.
Compliance matrix mapping each clause to a function and a test, study report with simulation evidence and witnessed site tests. Certification stays with the grid operator or an accredited body.
MATLAB/Simulink plant and controller models built to your functional specification, delivered with test harnesses, for your own deployment.
A named team of two to five controls engineers working inside your environment, your tools and your project calendar, by the month.
VETRA — Monitor. Control. Optimize. Transform.
VETRA is Lapomik Energy's SCADA, PPC and EMS platform. Operators use it to monitor and control a plant in real time and to aggregate data across OEMs and sites into one model. Each OEM controller remains the final executor of its own device; VETRA is the plant master above them — and control never depends on the cloud.

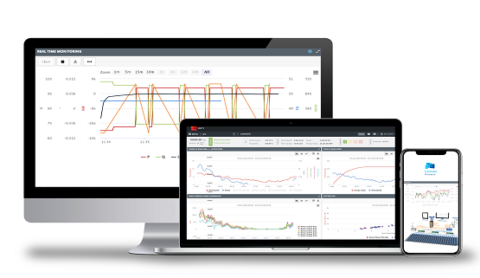

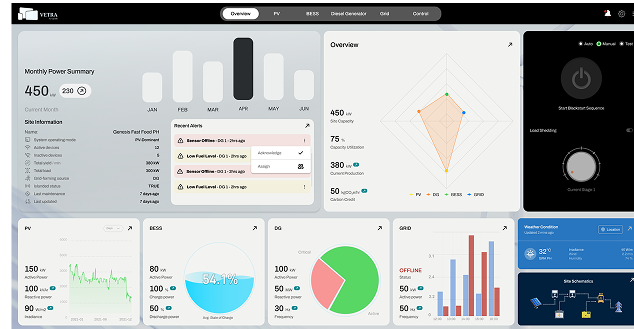

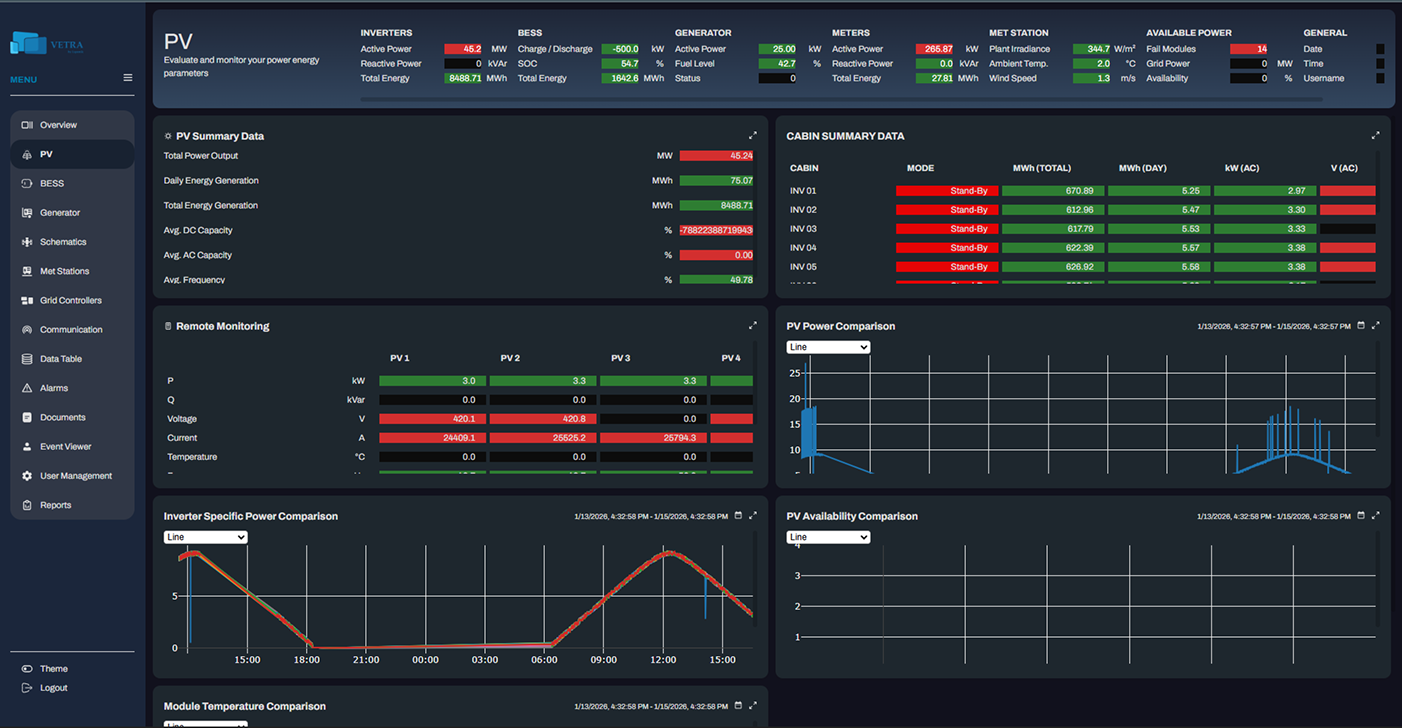

Sample VETRA dashboards shown with anonymised data.
Redundant plant servers or a DIN-rail industrial controller with an IEC 61131-3 runtime. Control, protection interfaces and the historian run on site.
Fleet Manager for multi-site aggregation, reporting and secure remote access through a DMZ — for owners, programmes and lenders.
Edge control with cloud aggregation: the plant keeps operating through a connectivity loss and back-fills data when the link returns.
Plant supervision, grid-code control at the point of interconnection (active/reactive power, frequency, voltage, ramp rates) and cost-optimised dispatch across PV, storage, gensets and grid.
One operations view across every site in a portfolio: availability, energy served and consumed, alarms, fuel, and contracted KPIs per site and per programme.
A normalised time-series and event layer for inverters, BMS, gensets, meters, weather stations and third-party systems, so different OEM data behaves as one dataset.
Diesel and gas generator monitoring: fuel level and consumption, run hours, loading, starts and health — the fastest route to visible operating savings.
A digital twin of the plant for simulation, what-if analysis and clause-by-clause grid-code checks before a controller setting ever reaches the field.
An energy copilot that observes, explains, predicts and recommends with evidence and confidence. It never holds final control authority; deterministic protection and grid-code layers do.
Control logic validated in simulation against faults, outages and grid events prior to deployment, with a signed record.
OT cybersecurity designed to align with IEC 62443 and IEC 62351: zones and conduits, hardened remote access, monitoring, backup and incident response.
Ticketing, service history, documentation and SLA tracking for every site, with remote-first Level 1 and Level 2 support from Port Harcourt.
Southbound to equipment and northbound to utilities, regulators and owner systems.
VETRA Intelligence answers in plain language and always shows its evidence. Sample exchanges below are illustrative.
Every answer carries an explanation, a confidence indicator, a timestamp and links to the supporting data — never a bare conclusion.
VETRA site controllers — run by VETRA SCADA · M04 · Operate
Intelligent power, controlled for performance. VETRA SCADA runs eight site controllers, one per plant topology — four for grid-connected sites and a ladder from fuel-save to full microgrid. Start with the controller the site needs today, and move up when storage, a grid connection or islanding is added — without changing platform, screens or support desk.
| Site topology | Controller | Classes |
|---|---|---|
| PV + grid | VETRA Feed | VF-100 · 200 · 500 · 1000 |
| BESS + grid | VETRA Vault | VA-100 · 250 · 500 · 1000 |
| Gensets + grid | VETRA Duo | VD-1 · 2 · 4 · 8 |
| PV + BESS + grid | VETRA Sync | VS-100 · 200 · 500 · 1000 |
| PV + gensets (± grid) | VETRA Blend | VB-100 … VB-3000 |
| PV + BESS + backup genset | VETRA Reserve | VR-100 · 200 |
| PV + grid + BESS + gensets | VETRA Island | VI-S · M · L |
| Any topology above ≈3 MW | VETRA H-PPC | ≈3–50 MW, engineered per project |
Grid-connected sites
PV + grid
Solar on a grid-connected site, controlled against the site load and the connection agreement. Feed takes as much solar as the site can use and exports only what the agreement allows.
BESS + grid
Battery storage behind a grid connection: charge when energy is cheap or plentiful, discharge when it is expensive or the demand peak is near.
Gensets + grid
Sites that run gensets beside an unreliable or expensive grid. Duo sequences the generators against the grid so the cheapest reliable source carries the load.
PV + BESS + grid
Solar and storage on a grid connection, coordinated: solar serves the load, the battery stores the surplus and shaves the peak, and the grid supplies the rest.
Fuel-save, storage and microgrid sites
PV + gensets
Solar-diesel control for sites that run on generators. Blend pushes solar as far as the gensets safely allow and gives the fuel saving back as a measured number.
PV + BESS + backup genset
Storage-led sites where the battery carries the load and the generator is the reserve. Reserve manages state of charge and calls the genset only when it is needed.
PV + grid + BESS + gensets
The complete microgrid controller: grid-connected and islanded operation, controlled transfer between them, and black start when everything is down.
Hybrid power plant controller
For any topology above about 3 MW, and grid-code-bound plants beyond the Island range: plant-level control at the point of interconnection, engineered per project with full SCADA.
Class limits, supported equipment and register maps are fixed in the datasheet and confirmed against your equipment list before any quotation. No performance figure is quoted without the site data behind it.
Every controller in the family opens onto the same platform. Add what the site or the portfolio needs.
Diesel and grid monitoring: fuel, runtime and tariff intelligence for every genset on site. More
Battery and asset analytics: health and degradation monitoring on the plant's own data.
OT cybersecurity for SCADA and site controllers: zoning, hardened remote access, monitoring and backup.
Multi-site view, reporting and secure remote access. Basic, Pro and Pro + API editions.
Metered billing, verified settlement and portfolio reporting. More
The energy copilot: explains, predicts and recommends with evidence.
Digital twin for what-if analysis and settings checks before the field.
A typical plant as we deliver it: field devices on open protocols, a segmented OT network, redundant plant control with VETRA as the master, a DMZ, and external interfaces to the system operator, owner and lenders. Every project gets its own version of this drawing.
Protection logic stays in the relays. Nothing in the DMZ or above it can issue a breaker command; supervisory setpoints pass through the PPC/EMS with limits, interlocks and audit logging.
Live demonstration · simulated
Move the load, cut the sun, drop the grid. The dispatch logic below follows the same merit order VETRA applies on a real plant: solar first, battery second, grid third, gas last — and every decision is visible.
VETRA Atlas — M01 · Plan
Atlas maps demand, sizes the least-cost hybrid option for every site, and runs the pipeline from identification through application and approval — under one VETRA Project ID from the first map.
Demand, settlement and grid-distance layers on an interactive map.
PV, battery storage, genset and grid options scored on levelised cost of energy and reliability.
Stage gates from Identified to Operating, with ageing and SLA flags.
Programme calls, eligibility checks, reviewer scoring and four-eyes decisions.
The identity a site receives on the first map follows it through finance, procurement, operation on VETRA SCADA and settlement in VETRA Ledger.
Available Pricing on request. Datasheet and quotation within five working days of a site, fleet or programme survey.
Plan, finance, procure, operate and settle are separate products. Each can be adopted alone; together they share one project record.
VETRA Capital — M02 · Finance
Capital manages grant, results-based finance, debt and blended programmes, runs tenders, and releases funds against milestones and metered results from VETRA Ledger.
Grant, results-based finance, debt and blended structures in one file.
Per-connection or per-kWh subsidies verified from Ledger meter data before disbursement.
Sealed bids, two-envelope evaluation and four-eyes award.
Evidence-linked releases with a full audit chain.
DSCR inputs, drawdowns and verified performance by portfolio.
Lots built in Atlas arrive with their sizing and site data; disbursement evidence arrives from Ledger against the same project record.
Available Pricing on request. Datasheet and quotation within five working days of a site, fleet or programme survey.
Plan, finance, procure, operate and settle are separate products. Each can be adopted alone; together they share one project record.
VETRA Source — M03 · Procure
Source runs supplier RFQs, purchase orders and delivery tracking, and connects buyers to partner-provided supply-chain credit at checkout.
Qualified suppliers, comparable quotes and an evaluation matrix.
From purchase order to clearance and site receipt, with status events to Atlas and Capital.
Pre-check, partner-lender offer and a repayment schedule mirrored to Ledger. Lapomik is not the lender.
Budget against committed against delivered, per project and per lot.
Serial numbers, FAT documents and warranty terms attached to each asset.
Every purchase order, delivery and serial number is filed against the project, so the asset register VETRA SCADA operates is the one that was bought.
Available Pricing on request. Datasheet and quotation within five working days of a site, fleet or programme survey.
Plan, finance, procure, operate and settle are separate products. Each can be adopted alone; together they share one project record.
VETRA Ledger — M05 · Settle
VETRA Ledger aggregates metered data from VETRA Link gateways and SCADA, bills customers, verifies the numbers and reports portfolios to owners, lenders and funders. When an operator is paid for energy delivered and availability achieved, the data is the contract. We aggregate it, validate it, settle it and carry the invoice through to reconciliation — so owners pay for what was delivered and operators are paid for what they delivered.
Tariffs, invoices and collections per customer, site and portfolio.
Monthly verification runs with hash-chained certificates lenders can pull by API.
Lender, programme and operator report packs in PDF, Excel and JSON.
A plug-and-play DIN-rail device that brings any site into Ledger, with or without a full SCADA.
Verified results feed results-based-finance claims and milestone releases in VETRA Capital.
Billing and settlement sit on the same project record that was planned in Atlas and is operated on VETRA SCADA.
Meter, inverter, battery and genset data from every OEM and every site normalised into one model, with gaps flagged rather than hidden.
Contracted energy, availability targets, penalties and performance certificates calculated from validated data under the rules of each agreement.
Operator claim, platform record and owner verification compared before any amount is approved. Estimated data is never presented as measured.
Approved invoices move to payment through a secure payment provider, then reconcile back to the settlement period.
Role-based approvals, a full audit trail and dispute handling, so every figure can be traced to its source reading.
Settlement reads plant data; it cannot write to a plant. Financial users never sit on the control network.
Available Pricing on request. Datasheet and quotation within five working days of a site or portfolio survey.
A fixed-scope entry engagement for independent power producers, developers and programme owners: we take a period of your plant data, rebuild energy delivered and availability from source readings, and report where the numbers and the invoices disagree.
VETRA VPP — virtual power plant
A virtual power plant aggregates distributed solar, storage, gensets and flexible load across many sites and dispatches them as one resource. VETRA VPP is the aggregation layer we are building on top of the controllers already in the field — so a site commissioned on Reserve, Island or H-PPC today is a VPP-ready asset tomorrow.
A VPP request never overrides site protection, battery limits, genset rules or the customer's own load. Optimisation does not outrank equipment or customer safety.
If the link to the platform is lost, each site falls back to its local operating mode. Control never depends on the cloud.
Requests are scheduled, signed and logged. Every dispatch has a record of what was asked, what the site accepted and what was delivered.
Delivered flexibility is verified from metered data and carried through the same validation and invoice lifecycle as our settlement service.
Device identity, signed commands and zoned networks, designed to align with IEC 62443. Financial and market users never sit on the control network.
A canonical model across OEMs today; open demand-response and DER interfaces are on the roadmap, confirmed per programme.
Status: in development. VETRA VPP is described here as direction, not as an operating service; participation in any market or programme depends on the applicable regulation and licensing. Portfolio owners, utilities and programme sponsors interested in a first fleet are invited to get in touch.
VETRA EMS for data centres — Control the power. Protect the uptime. Reduce the cost.
A data centre already has a UPS, a building management system and a generator controller — each looking after its own equipment. What it rarely has is one system deciding which source should carry the load, at what cost, with what reserve. VETRA EMS is that layer: it orchestrates utility, gensets, storage and solar around the critical load, and leaves protection and the UPS transfer path exactly where they are.
Utility, gensets, storage and solar dispatched on cost and reserve, with redundancy (N, N+1, 2N) treated as a constraint the EMS never trades away.
Sequencing, loading and run-hour balancing, plus VETRA DGM for tank levels, consumption, refills and autonomy in hours at the present load.
Battery storage used for peak shaving, ride-through support and genset start bridging. The UPS and its static transfer path remain the final protection for the IT load.
On-site PV integrated without disturbing the critical bus; time-of-use and demand charges managed where the tariff rewards it.
PUE and energy KPIs by hall, by system and by tenant; sub-metering and allocation data ready for billing and sustainability reporting.
Controlled transfer, load-shed priorities and black-start sequencing, rehearsed in simulation before they are needed on the floor.
Modbus, SNMP, BACnet, OPC UA, IEC 61850 and REST to BMS, DCIM and owner systems. Supported points depend on the interfaces your equipment exposes.
VETRA Shield: zones and conduits, hardened remote access and audit logging, designed to align with IEC 62443. The energy network stays separate from tenant IT.
Remote Operations Centre supervision and a VETRA Care plan, with response targets written into the agreement.
We do not quote a percentage saving before we have your site data. Every figure in a proposal is either measured at your facility or labelled illustrative. Also available for telecom-tower portfolios, where hundreds of small sites are run as one fleet.
VETRA EV — charging energy management
An electric fleet is a large new load on a supply that was never sized for it. On a weak or expensive grid, the question is not which charger to buy but where the energy comes from, when, and at what cost. VETRA EV treats chargers as one more controllable asset on the site — beside solar, storage, gensets and the grid — so vehicles are ready when they are needed and the site never trips to get them there.
Charging power shared across bays within the site's connection and transformer limits, so adding chargers does not mean upgrading the supply first.
Vehicles that are parked through the day absorb the solar the site would otherwise curtail; charging follows the sun where the schedule allows.
Battery storage delivers the short, high peaks of DC charging and refills slowly — fast charging on a connection that could not supply it directly.
Each vehicle gets the energy it needs by its departure time, in priority order, at the lowest cost the tariff and the sources allow.
Charging continues through grid outages on solar, storage and gensets, with genset running kept to the minimum the schedule requires.
Energy, cost and carbon per vehicle and per kilometre, with the fuel displaced stated against a measured baseline — the same discipline we apply to CNG fleets.
Fleets rarely change fuel all at once. Lapomik supports the mix: compressed natural gas for the vehicles that suit it today, electric for those that suit it next — measured on the same platform, so the finance team compares like with like.
Status: in development. EV charging management is being added to the VETRA EMS and is offered today as an engineered project scope; charger compatibility is confirmed per project against the interfaces each charger exposes. Vehicle-to-grid is on the longer roadmap and depends on vehicle, charger and regulatory support. No savings figure is quoted without the fleet's own data.
From a 200 kW captive plant to a utility-scale interconnection, the control-system scope changes in size, not in discipline — and every sector that runs on generators, grid or solar needs the same three things: to monitor, control and aggregate.
Plant SCADA, PPC at the point of interconnection, system-operator telemetry and grid-compliance testing.
PCS/BMS integration, state-of-charge and thermal supervision, frequency and voltage support, firming and peak shaving.
EMS dispatch, genset sequencing, islanded operation and black start; programme KPIs for RESCOs and regulators.
Rooftop and ground-mount PV with storage and gensets behind the meter; fuel and cost dispatch; VETRA DGM for existing gensets.
Hundreds of small sites aggregated in Fleet Manager with common KPIs, alarms and fuel tracking.
IEC 61850 relay integration, RTU gateways and IEC 60870-5-104 / DNP3 links to the transmission or distribution operator.
Every sector that needs power. The plant differs; the control discipline does not.
Remote captive plants with large motor loads and long fuel supply lines. Hybrid PV, storage and genset dispatch, sequencing and fuel accounting per pit and per camp.
Hotels, resorts and serviced apartments where guests notice every flicker. Generator monitoring first, then rooftop solar and storage, with consumption per building and per wing.
Hospitals, clinics and diagnostic centres: critical loads, transfer sequences, oxygen plants and cold chain, with audited availability for boards and funders.
Factories, breweries, food and beverage, plastics, textiles: process continuity, power quality and cost-based dispatch that keeps the line running through grid loss.
Large captive gas and diesel plants with medium-voltage distribution: relay integration, load-shedding schemes and plant-wide SCADA.
Upstream, midstream and oil-servicing facilities and camps: hybrid power, fuel monitoring and OT-grade cybersecurity at every site.
Farms, cold stores, mills and agro-processing zones: irrigation pumping and processing loads on solar-diesel hybrids, with seasonal dispatch profiles.
Tower sites and data hubs: hundreds of small plants aggregated in Fleet Manager with fuel, battery health and alarms per site.
Resilient hybrid supply with black start, controlled transfer and fuel security, reported to the standard the tenants require. VETRA EMS for data centres
Offices, residential estates and gated communities on shared plants: tenant sub-metering, allocation and billing data from the same platform.
Supermarkets, malls and cold-chain retail: peak shaving, generator monitoring and energy cost per outlet.
Branches and head offices: uninterrupted power for operations and a fleet view of every branch generator.
Universities, campuses and schools: multi-building distribution, laboratory loads and programme reporting.
Ministries, secretariats, hospitals and schools under electrification programmes, with energy served and consumed per site so misuse and outages are visible.
Interconnected and isolated mini-grids, embedded generation and system-operator telemetry that behaves the way the grid code expects.
Ports, warehouses, depots and vehicle fleets — hybrid power for the sites, CNG conversion for the trucks and managed charging for electric fleets.
Pumping stations and treatment works: pump scheduling on solar, remote alarms and run-hour records.
Large intermittent loads served by big gensets: fuel monitoring, load management and rooftop solar where the roof allows.
Sector not listed? If it runs on a generator, a grid connection or solar, the scope is the same — ask.
VETRA is built to work with any manufacturer's equipment through open protocols and a growing driver library. Compatibility with a specific OEM model is confirmed during engineering and recorded in the project's compatibility register. We do not claim OEM certification.
| Equipment class | Typical systems | Protocols | Integration route | Status |
|---|---|---|---|---|
| PV inverters and plant controllers | Huawei, Sungrow, SMA, Power Electronics, GoodWe and other string/central inverters and plant controllers | SunSpec Modbus, Modbus TCP/RTU, OEM APIs | Driver library or adapter; VETRA as supervisory master | Confirmed per project |
| Battery storage (PCS + BMS) | Tesla Megapack, Fluence, CATL, BYD, Sungrow, Huawei and other PCS/BMS systems | Modbus TCP, CANbus, IEC 61850 | Driver library; setpoints via PPC/EMS, protection untouched | Confirmed per project |
| Generators and controllers | ComAp, DEIF, Woodward and other genset controllers; diesel and gas gensets; ATS | Modbus, SAE J1939, dry contacts where nothing else exists | Comms-based integration preferred over dry contacts | Confirmed per project |
| Metering | Acrel, Schneider Electric, Siemens and other revenue, check and PCC meters | Modbus, IEC 61850 MMS | Data aggregation and settlement | Confirmed per project |
| Switchgear and protection | Schneider Electric, Siemens, Hitachi Energy, GE Vernova and other switchgear and relays | IEC 61850 GOOSE/MMS, Modbus | Status and interlocks; protection logic stays in the relay | Confirmed per project |
| Weather and environment | Pyranometers, weather stations, module temperature | Modbus RTU/TCP | Performance ratio and forecasting inputs | Confirmed per project |
| Utility and owner systems | System operator SCADA, regulator programme data, ERP/CRM | IEC 60870-5-104, DNP3, OPC UA, MQTT, REST | API gateway and integration layer | Confirmed per project |
Trademarks belong to their respective owners. A listing indicates integration capability under VETRA, not endorsement, partnership or certification. The directory format for a project register is OEM → Equipment → Model → Protocol → Integration status → Data available → Firmware → Compatibility. Ask for the register for your equipment list.
As published on lapomikenergy.com.
How to engage
Send the single-line diagram, the equipment list and the grid-connection requirement. A scoping call within two working days, a scoped proposal within ten.
Thirty minutes on the plant, the equipment and the deadline. Send the single-line diagram if you have it.
Scope, deliverables, schedule and price within ten working days, with the SOW template and rate card.
Functional design specification workshop with your engineers and the OEMs. Document register opened.
Weekly progress report, stage-gate reviews and a shared document register until handover.
Fixed price for a defined scope, an engineering pod of two to five named controls engineers by the month, or Owner's Engineer by the review. A rate card is issued with each proposal; pricing is on request.
Source models, PLC code and documents are delivered to the client under the SOW, with version history. Lapomik retains its pre-existing libraries and tools. See the documents you receive.
No. The service is vendor-neutral. We can deliver on VETRA hardware, on your preferred industrial controller, or as models and code for your own platform.
Any device that exposes Modbus, IEC 61850, DNP3, OPC UA, CAN or a documented serial protocol. New devices are added to the driver library under the SOW — see OEM compatibility.
With a model of the plant as built, a study report of the required cases and a site test witnessed by the grid operator. Certification, where required, is by an accredited body.
Yes. Modelling, design, SCADA configuration and simulation-based testing can be delivered remotely. Site commissioning is delivered by arrangement.
Pricing is on request and depends on plant size, topology, the number of OEMs and the grid-code cases. A fixed price is quoted for a defined scope; engineering pods are priced by the month.
What is missing
We would rather you read this here than find it in a proposal. These are the limits of the service as it stands, what we do about each one now, and what comes next.
| Gap | How it is covered today | What comes next |
|---|---|---|
| Third-party certification of our own processes | Work is designed to align with IEC 61850, IEC 62443 and IEEE 1547 / 2800; test records are witnessed by the client and the grid operator. | Certification scope and status to be published — see certifications. |
| In-house real-time test laboratory | Hardware-in-the-loop campaigns run on the client's or a partner's real-time platform, or as software-in-the-loop on the Simulink model. | Planned. Details will be published when available. |
| Published reference list | Project references are shared on request under NDA, with the client's permission. The training plant LPK-PH-TRN-01 in Port Harcourt is available for live demonstration. | Case studies released as clients approve them. |
| Grid-code type certification | We prepare the compliance model, studies and site tests. Certification itself is by an accredited body or the grid operator. | Working arrangements with accredited test bodies for clients who need a certificate. |
| Round-the-clock staffed operations | Remote monitoring and response under VETRA Care, with response times by tier; after-hours cover by arrangement. | Extended staffing of the Remote Operations Centre as the supported fleet grows. |
| Protection relay settings and primary design | We coordinate with the client's protection engineer and integrate relay status and trips into SCADA. | Not planned as a core service; delivered through partners. |
| Third-party equipment supply | We do not resell inverters, batteries or gensets. Procurement support is available through VETRA Source. | Remains out of scope by design: vendor-neutrality is the point. |
| Fixed public price list | Pricing is per scope: fixed price for defined deliverables, monthly retainer for engineering pods. A rate card is issued with each proposal. | Indicative price bands by plant size, once enough engagements are closed to publish them responsibly. |
Engineering services — Service 01 · Power Plant Controller (PPC)
A Power Plant Controller coordinates every inverter and battery in the plant so that active power, reactive power, voltage, frequency response and ramp rate at the point of common coupling meet the grid operator's requirements — continuously, measurably and provably.
The goalDeliver a PPC that is designed from the grid-connection requirement, proven on a model before it is built, tested before it is shipped, and witnessed at the point of connection before the plant is accepted.
Twenty inverters each at 100 % do not make a plant at its contracted limit. Without a PPC the plant over- or under-delivers at the point of connection and breaches the connection agreement.
Grid operators require Q(U), power-factor or Q-setpoint control at the point of connection. Inverter-level settings cannot hold it through cable losses and transformer taps.
Droop and fast frequency response are required on paper; nobody has shown how the plant behaves when the grid frequency moves.
Cloud edges and battery dispatch produce power swings the grid cannot accept. Ramp limiting needs a plant-level controller with storage in the loop.
A vendor's microgrid controller runs its own equipment well and treats everyone else's as a contact. The owner cannot read, change or prove the logic.
Each OEM controls its own equipment well; nobody owns the plant-level control. We sit above the OEM controllers and work with any inverter, battery, genset or protection vendor, and we do not resell their equipment.
How it works
Each stage ends with a numbered deliverable, reviewed with you before the next stage starts. See the documents you receive.
Grid code, connection agreement and PPA reviewed; control functions and limits tabulated.
Plant electrical model and PPC control model in Simulink; every required case simulated and reported.
Functional design specification: control loops, setpoint sources, limits, interlocks, fallback and modes.
IEC 61131-3 implementation on an industrial controller, or Simulink-generated code for your platform.
Simulation-based and hardware-in-the-loop testing against the written plan; FAT with the OEM controllers in the loop.
Point-of-connection tests witnessed by the grid operator; as-built model and compliance report issued.
Scope
Every clause of the grid code mapped to a function, a model result and a witnessed test.
The plant delivers what the grid and the PPA allow.
Hold the point of connection at the voltage or power factor the grid asks for.
Prove how the plant behaves when the grid moves.
Everything the grid operator needs to approve the connection.
Deployed on our hardware or yours.
Designed to align with IEC 61850, IEC 62443, IEEE 1547 / IEEE 2800 and the applicable national grid code. We do not certify equipment; certification, where required, is by an accredited body or the grid operator.
Who it serves
| Who | Typical scope | What they get |
|---|---|---|
| Utility-scale PV and PV + BESS (3–50 MW+) | Full PPC with compliance package | Grid-operator approval evidence and an as-built model |
| C&I hybrid sites (100 kW–3 MW) | Export limiting, power-factor control, genset coordination | A plant that never breaches its connection agreement |
| BESS projects | Charge and discharge control at the point of connection, frequency services | Services the battery can be paid for |
| OEMs and integrators | PPC built to your specification, on your hardware | A controller you can ship with your equipment |
Evidence the grid operator can accept.
Every case has run on the model and in test first.
No conservative derating to stay safe.
Your engineers can audit and change it.
Works with any inverter brand on the plant.
From requirement to witnessed test.
Questions
From scope to commissioning, typically three to six months for a utility-scale plant, driven mostly by equipment delivery and the grid operator's test schedule. Modelling and design alone take four to eight weeks.
Yes. The usual architecture keeps the OEM controller as the device-level executor and places the PPC above it as the plant-level master, with a defined interface and fallback.
The model and the compliance matrix are delivered to you. Changes are re-run on the model, re-tested and re-issued as a new revision.
We provide the model, study, test procedure and witnessed results. The certificate, where one is required, is issued by the grid operator or an accredited body.
PPC, EMS and SCADA are designed together, by the same engineers, on the same model and document register. Buy one or all three.
SERVICE 02 · DISPATCHEnergy Management SystemDispatch that decides, every second, how PV, batteries, gensets and grid share the load — with safe islanding and black start.FULL SCOPE →SERVICE 03 · SUPERVISION & DATASCADA & HMIEvery OEM device on one data model, one screen and one record — with OT security and Owner's Engineer review.FULL SCOPE →ENGINEERING SERVICESAll servicesIntegration, testing, commissioning, Owner's Engineer review, engineering pods and support.ALL SERVICES →Send the single-line diagram, the equipment list and the grid-connection requirement. A scoping call within two working days, a scoped proposal within ten.
Engineering services — Service 02 · Energy Management System (EMS)
An Energy Management System dispatches PV, batteries, gensets and grid against cost, availability, fuel and battery-life objectives, and keeps the plant stable through islanding, black start and resynchronisation. We design, model, implement and test the EMS for hybrid plants of any topology.
The goalDeliver dispatch logic that cuts diesel, protects the battery, keeps the lights on through grid loss, and is documented so clearly that the operator and the lender both understand why the plant did what it did.
Without a plant-level EMS the genset runs on a timer or a dry contact while storage sits unused. Fuel is the largest operating cost on most hybrid sites.
Dispatch that ignores depth of discharge, C-rate and temperature limits voids the warranty and shortens the asset life.
Grid loss is handled by the inverter alone, with no coordinated transfer, no load-shedding priority and no resynchronisation plan.
Operating strategy lives in a tariff table someone typed once. It does not respond to forecast, tariff change or equipment state.
When the owner asks why diesel consumption rose last month, nobody can show the dispatch decisions that caused it.
Each OEM controls its own equipment well; nobody owns the plant-level control. We sit above the OEM controllers and work with any inverter, battery, genset or protection vendor, and we do not resell their equipment.
How it works
Each stage ends with a numbered deliverable, reviewed with you before the next stage starts. See the documents you receive.
Cost, availability, fuel, emissions and battery-life objectives agreed with the owner; tariff and fuel data collected.
Hybrid plant modelled in Simulink with load, irradiance and tariff profiles; dispatch strategies compared on a year of data.
Dispatch rules, modes, priorities, limits and transitions written as a functional design specification.
EMS implemented on the plant controller in IEC 61131-3, with optimisation where the case justifies it.
Simulation-based and hardware-in-the-loop testing and FAT with grid-loss, genset-failure and battery-limit scenarios run against the plan.
Thirty-day performance review after commissioning against the modelled savings.
Scope
Fuel is the biggest cost on a hybrid plant. Dispatch logic is the cheapest way to cut it.
The core of the EMS: who serves the load, when and why.
Keep the plant alive when the grid is not.
Protect the asset and its warranty.
Plan ahead, not just react.
Every decision recorded with its reason.
Designed to align with IEC 61850, IEC 62443, IEEE 1547 / IEEE 2800 and the applicable national grid code. We do not certify equipment; certification, where required, is by an accredited body or the grid operator.
Who it serves
| Who | Typical scope | What they get |
|---|---|---|
| Mini-grid developers | Fuel-save EMS with islanding | Lower diesel spend, higher availability, lender-grade reporting |
| C&I plants with gensets | Peak shaving and genset coordination | A smaller bill and fewer generator hours |
| Telecom, data centre and industrial sites | Reserve, black start and load priority | Critical load protected through grid events |
| IPPs with BESS | Arbitrage, services and battery-life control | Revenue without warranty risk |
Generators run only when needed.
Limits enforced, warranty protected.
Islanding and black start by design.
Rules written down and owned by you.
Verified against the model after commissioning.
PV, BESS, gensets and grid, in any combination.
Questions
On grid-connected plants the EMS decides what to do and the PPC makes the point of connection comply with it; they are usually delivered together. On isolated plants the EMS can run alone.
Yes, through the genset controller's protocol (most controllers expose Modbus) rather than dry contacts, so the EMS sees load, fuel and state. For monitoring alone, see VETRA DGM.
It depends on load shape, solar resource and storage size. The modelling stage gives you a number for your plant before you commit; the thirty-day review verifies it.
Yes. IEC 61131-3 implementation on an industrial controller of your choice, or on the VETRA site controllers.
PPC, EMS and SCADA are designed together, by the same engineers, on the same model and document register. Buy one or all three.
SERVICE 01 · GRID-CODE CONTROLPower Plant ControllerActive and reactive power, voltage, frequency and ramp rate held at the point of connection — from 100 kW C&I sites to 50 MW+ plants.FULL SCOPE →SERVICE 03 · SUPERVISION & DATASCADA & HMIEvery OEM device on one data model, one screen and one record — with OT security and Owner's Engineer review.FULL SCOPE →ENGINEERING SERVICESAll servicesIntegration, testing, commissioning, Owner's Engineer review, engineering pods and support.ALL SERVICES →Send the single-line diagram, the equipment list and the grid-connection requirement. A scoping call within two working days, a scoped proposal within ten.
Engineering services — Service 03 · SCADA & HMI
SCADA brings every OEM device — inverters, batteries, gensets, meters, relays, weather stations — into one supervisory system with alarms, trends, historian and reporting. We design, integrate, secure and commission it, and we review other vendors' SCADA packages as Owner's Engineer.
The goalGive the operator, the owner and the lender the same verified picture of the plant, from one system they control, with the alarms, history and reports to run it well and to prove how it ran.
Each OEM cloud shows its own equipment. No one sees the plant, and no data set can be relied on for operations or settlement.
Thousands of device alarms with no philosophy, no priority and no response procedure. The real fault is missed in the noise.
Data is kept for a month on a device, then gone. Performance questions, warranty claims and lender reports cannot be answered.
Modbus registers, IEC 61850 datasets and DNP3 points were set up by different people and never documented. A single change breaks the plant view.
Controllers reachable from any laptop, default passwords, no zones. The plant is one phishing email from an outage.
Each OEM controls its own equipment well; nobody owns the plant-level control. We sit above the OEM controllers and work with any inverter, battery, genset or protection vendor, and we do not resell their equipment.
How it works
Each stage ends with a numbered deliverable, reviewed with you before the next stage starts. See the documents you receive.
Every device, protocol, address and point listed; existing systems and networks assessed.
Architecture, data model, tag naming, alarm philosophy, HMI standard and cybersecurity zones specified.
Drivers configured and tested device by device; communication matrix and tag register issued.
HMI screens, alarm lists, trends, historian and reports built to the standard.
Point-to-point checks, FAT and SAT with signed-off test records.
Scope
Every reading graded, every alarm prioritised, every point documented — before the plant is handed over.
Every device on one data model.
Screens and alarms designed for operators, not for vendors.
Keep the record and make it useful.
A control network built to be defended.
An independent eye on a vendor's package.
From one site to a fleet.
Who it serves
| Who | Typical scope | What they get |
|---|---|---|
| EPC contractors | SCADA scope of the EPC contract | Delivered to your numbering, tested, handed over |
| Plant owners and IPPs | Replacement or upgrade of vendor SCADA | A system you own, with the history your lender needs |
| Developers and portfolio owners | One standard across many sites | Fleet view and the same report from every site |
| Owners and lenders | Owner's Engineer review of a vendor package | Independent comments before construction, not after |
Every device, every brand, one screen.
Priority, procedure, fewer nuisance alarms.
A historian the lender and off-taker can rely on.
Tag register and communication matrix handed over.
Zones, hardening, secure access.
Vendor packages checked before they are built.
Questions
Yes. The survey stage lists what is installed; the usual path is to run the new system in parallel, migrate the historian, then cut over at a planned outage.
The VETRA SCADA platform, or an industrial SCADA platform of the client's choice. The design deliverables are platform-independent.
We design the architecture and specify the equipment; installation is by the client's network contractor or under a separate scope.
An independent review of a vendor's design package on the owner's behalf, with a numbered comment log the vendor must answer before the design is issued for construction.
PPC, EMS and SCADA are designed together, by the same engineers, on the same model and document register. Buy one or all three.
SERVICE 01 · GRID-CODE CONTROLPower Plant ControllerActive and reactive power, voltage, frequency and ramp rate held at the point of connection — from 100 kW C&I sites to 50 MW+ plants.FULL SCOPE →SERVICE 02 · DISPATCHEnergy Management SystemDispatch that decides, every second, how PV, batteries, gensets and grid share the load — with safe islanding and black start.FULL SCOPE →ENGINEERING SERVICESAll servicesIntegration, testing, commissioning, Owner's Engineer review, engineering pods and support.ALL SERVICES →Send the single-line diagram, the equipment list and the grid-connection requirement. A scoping call within two working days, a scoped proposal within ten.
Control logic is tested against a simulated plant before it is trusted with a real one. We run faults, outages, ramps and communication failures against a model of your site, and release only what passed.
Plant, network and protection model built from the design basis.
Model behaviour checked against expected plant behaviour.
The project's control logic runs against the model.
Faults, grid loss, irradiance ramps, setpoint steps, comms loss.
Timing, limits and control-loop behaviour recorded.
Pass or fail against the functional design specification.
Signed record and configuration baseline.
The approved configuration goes to factory and site acceptance.
Power plant control, inverter and battery dispatch, microgrid sequencing, islanding and black start, SCADA data paths and communication failure modes.
MATLAB/Simulink plant models and IEC 61131-3 controller logic — the same toolchain used to build VETRA.
Behaviour is proven before site, so commissioning confirms rather than discovers. Simulation results are never presented as field compliance.
Every project moves through the same gated sequence, and every gate has a document, a test or a decision attached. The control system is a first-class deliverable, not the last box on the schedule.
Every project moves through the same gated sequence. Each gate has a document, a test or a decision attached.
Each document carries a controlled number (LE-[DOCTYPE]-[SITE]-VETRA-[SEQ]) and a revision history, so an owner, lender or auditor can trace what was designed, what was tested and what is running.
We stay after commissioning. Assets are tracked from serial number to decommissioning, work is scheduled from data rather than calendars, and every ticket has an owner and a clock.
Tracked per asset: serial number, OEM and model, installation date, warranty, service contract, firmware, maintenance history, operating hours, performance, faults, spares and documentation.
VETRA Care — Intelligent power. Supported for performance.
VETRA Care is the subscription that keeps a commissioned controller supported, updated and watched. One plan per site, sized to the controller class, with Fleet Manager included in every tier.
For sites that need the platform kept current and a desk to call.
The plan most sites run: supported, monitored and reviewed.
For plants where an hour down is measured in money or in patients.
Warranty is honoured with or without a plan, and per-incident support is available to sites without one. Service levels are written into each agreement in plain words — we do not print a blanket 24/7 promise we cannot staff.
Preventive and corrective maintenance visits and extended warranty can be added to any tier. Multi-site and multi-year agreements are priced as a frame. The full inclusions of each tier are set out in the programme description.
A SCADA integrator sits between the people who build a plant and the people who have to run it. We work for both.
SCADA, PPC and EMS as a subcontracted package with fixed acceptance criteria, so the control system stops being the schedule risk.
One vendor-neutral platform across plants and OEMs, with the documentation and data that keep a portfolio bankable.
Programme KPIs, contracted-performance tracking and remote support for fleets of smaller sites.
Plant controllers and telemetry that behave at the point of interconnection the way the grid code expects.
Alarms, work orders and condition data that turn maintenance from calendar-driven to evidence-driven.
Independent review of control packages, availability reporting and audit-ready records.
Factories, hotels, hospitals, banks and estates with captive power that need dispatch on cost and uptime they can prove.
Distributed sites managed as one fleet rather than a thousand installations.
Hospitals, schools and public buildings under electrification programmes, with performance data that can be audited.
The public website, the customer platform and the operational technology are different systems with different security boundaries. Nothing on a public page can reach a breaker.
Standards are stated as design alignment. Certifications appear on this page only once they are verified.
Permit-to-work, lockout/tagout, inspection and incident reporting are part of every scope. Hot-works and cold-works commissioning steps are separated and signed off.
Controlled documents with revision history, factory and site acceptance records, and configuration baselines for every controller we deploy.
Certifications and registrations are listed in the register below.
ISA-95 / IEC 62264 · IEC 61850 and IEC 61850-7-420 · IEC 60870-5-104 · DNP3 / IEEE 1815 · SunSpec Modbus · OPC UA · IEEE 1547-2018 · IEC 62933 · IEC 61724 · ISA-18.2 / IEC 62682 · ISA-101 · IEEE 2030.7 / 2030.8 · IEC 62898 · IEC 62443 · IEC 62351 · DTDL · applicable national grid codes, distribution codes and mini-grid regulations.
Grid-code requirements are verified clause by clause against the controlling documents for each project. Simulation results are not field compliance.
Everything here is published with its issuing body and scope. Items marked "to be published" are listed so the register is complete; they carry no claim until a certificate number and issuer appear beside them.
| Item | Issuing body | Scope | Reference | Status |
|---|---|---|---|---|
| Company registration | Corporate Affairs Commission | Lapomik Energy Nigeria Limited | RC 1550396 | Registered |
| VETRA controller hardware platform | Hardware manufacturer | Industrial DIN-rail fanless controller certified CE, CB, UL and FCC by its manufacturer; VETRA runs on certified industrial hardware | Manufacturer certificates on file | OEM certification |
| Standards alignment | — | Designed to align with ISA-95 / IEC 62264, IEC 61850, IEC 60870-5-104, DNP3 / IEEE 1815, SunSpec Modbus, OPC UA, IEEE 1547-2018, IEC 62933, IEC 61724, ISA-18.2 / IEC 62682, ISA-101, IEEE 2030.7 / 2030.8, IEC 62898, IEC 62443, IEC 62351 and applicable national grid codes | Per-project compliance matrix | Design alignment, not certification |
| Quality management system | To be published | ISO 9001 scope for engineering, integration and support | — | To be published |
| Information and OT security | To be published | ISO/IEC 27001 and IEC 62443 process or product certification | — | To be published |
| Electrical installation licensing | To be published | Electrical installation and inspection licences held by the company and its engineers | — | To be published |
| Gas and CNG licences | To be published | Conversion-centre and daughter-station licences under the applicable gas regulator | — | To be published |
Lapomik CNG Academy and the controls programme issue Lapomik Energy certificates for CNG conversion technicians, CNG station operations, SCADA and controls operators, and PPC/EMS engineers. External accreditation of these programmes is published in the register only when verified.
Certificates, test records and registration documents can be requested through the proposal form or by e-mail to info@lapomikenergy.com. Lenders and owners' engineers receive copies with the project documentation package.
We report what the plant recorded, not what the brochure hoped. Every figure traces back to metered energy and modelled displacement with stated factors.
Share of load served by solar and storage, per site and per portfolio.
Litres of diesel and petrol avoided by solar, storage dispatch and CNG conversion.
Calculated from displaced fuel and grid energy using published emission factors, stated on every report.
Scheduled reports and exports for lenders, programmes and boards.
One sign-in for assets, alarms, tickets, documents, invoices and reports. Support by portal, WhatsApp and the AI assistant, with a person one escalation away.
Access is provisioned by Lapomik Support for named users and roles.
Portal sign-in is connected at platform launch. Request access through the proposal form.
Lapomik Energy is the SCADA integration and VETRA platform business of Lapomik Energy Group, an integrated renewables, gas, digital energy, energy management, power systems and technical training group headquartered in Port Harcourt. The group is built on six business pillars that share one engineering discipline, one platform and one support organisation.
Solar PV, gas-fuelled generation and gensets, integrated as one plant.
Battery energy storage for firming, backup, black start and peak shaving.
SCADA, power plant control and EMS by VETRA above every OEM.
Aggregated data, digital twins and AI that explain, predict and recommend with evidence.
A typical customer journey through the group. Each step stands alone; together they form one relationship with one platform, one document system and one support desk.
The complete control-system scope for PV, battery storage and hybrid plants: engineered, proven on the bench, commissioned on site and documented for the owner.
Lapomik Energy's own platform: one operator view to monitor, control and aggregate every asset, whatever the OEM, with control that never depends on the cloud.
Turn every diesel or gas generator into a measured, accountable asset. For most businesses this is the first step, and the diesel baseline it produces is the foundation of any solar or hybrid business case.
Fleet conversion to compressed natural gas at our Port Harcourt conversion centre, with monitoring built in. Natural gas is becoming the practical alternative to petrol and diesel for fleets; we make the switch measurable.
Illustrative inputs — replace every figure with your own. Results are arithmetic on your inputs, not a quotation.
Compressed natural gas supply infrastructure for converted fleets and industrial users, developed alongside the conversion business so that a customer who converts can also fuel.
Lapomik CNG Academy for conversion and station technicians, and a controls programme that trains operators and engineers on a live hybrid plant, LPK-PH-TRN-01 in Port Harcourt — so the first plant a graduate operates is not the customer's.
Every product and service in the group, what it is for, and where it stands today. Status is stated as it is — not as we would like it to be.
| Line | Product or service | What it does | Status | |
|---|---|---|---|---|
| Site controllers | VETRA Feed · VF-100 to VF-1000 | PV + grid: export-limit and curtailment control | Available | Details |
| VETRA Vault · VA-100 to VA-1000 | BESS + grid: peak shaving and load shifting | Available | Details | |
| VETRA Duo · VD-1 to VD-8 | Gensets + grid: sequencing and load sharing | Available | Details | |
| VETRA Sync · VS-100 to VS-1000 | PV + BESS + grid hybrid control | Available | Details | |
| VETRA Blend · VB-100 to VB-3000 | PV + genset fuel-save control | Available | Details | |
| VETRA Reserve · VR-100 / VR-200 | PV + BESS with backup genset | Available | Details | |
| VETRA Island · VI-S / M / L | Full microgrid with islanding and black start | Available | Details | |
| VETRA H-PPC | Hybrid power plant controller for larger, grid-code-bound plants | ≈3–50 MW · per project | Details | |
| VETRA lifecycle | VETRA Atlas | Plan: geospatial planning, least-cost sizing, pipeline and applications | Available | Details |
| VETRA Capital | Finance: RBF and grants, tenders, milestone disbursements | Available | Details | |
| VETRA Source | Procure: RFQs, purchase orders, supply-chain credit, delivery tracking | Available | Details | |
| VETRA Ledger | Settle: metered billing, verified settlement, portfolio reporting | Available | Details | |
| VETRA platform | VETRA SCADA · PPC · EMS | Plant supervision, grid-code control and dispatch | Live on LPK-PH-TRN-01 | Details |
| Fleet Manager | Multi-site operations view and reporting | Available | Details | |
| VETRA DGM | Generator and fuel monitoring | In service | Details | |
| VETRA Shield | OT cybersecurity | Available | Details | |
| GridTwin · VETRA Insight | Digital twin and performance analytics | Per project | Details | |
| VETRA Intelligence | Energy copilot — never the final control authority | Phased roadmap | Roadmap | |
| VETRA EMS for data centres | Energy control layer for critical facilities; telecom-tower edition | Engineered per project | Details | |
| VETRA EV | EV charging energy management for depots, campuses and hubs | In development | Details | |
| VETRA VPP | Virtual power plant: fleet aggregation and dispatch | In development | Details | |
| Services | SCADA / PPC / EMS integration | Design, integration, acceptance testing and commissioning | Delivered on live sites | Details |
| Owner's engineering and review | Independent review of control packages | Available | Details | |
| Settlement & Availability Audit | Fixed-scope audit of energy, availability and invoices | Available | Details | |
| VETRA Care · Essential / Advanced / Premium | Support, software and maintenance subscription | Available | Details | |
| Gas | Lapomik CNG — vehicle conversion | Fleet conversion, inspection and servicing | Operating | Details |
| VETRA CNG monitoring | Fills, consumption and savings per vehicle; cascade monitoring | Available | Details | |
| CNG daughter station | Cascade storage and dispensing | In development | Details | |
| People | Lapomik CNG Academy | Conversion and station technician certification | Enrolling | Details |
| Controls programme | SCADA operator and PPC/EMS engineer training on a live plant | Enrolling | Details |
Training academy
Lapomik CNG Academy trains and certifies conversion technicians. Our controls programme trains operators and engineers on a live hybrid plant, LPK-PH-TRN-01 in Port Harcourt, so the first plant a graduate operates is not the customer's.
Our direction
What is available, what is next and what we are building toward. Items beyond "Available now" describe direction, not a delivery commitment.
Engineering notes, product documents and a technical webinar series built around live simulations — roughly seventy per cent education, the rest demonstration.
SCADA asks what is happening? The PPC asks how should the plant respond? The EMS asks what should the energy system do next? Each session answers one of them on a simulated plant.
Dates are announced by e-mail. All simulated plants are hypothetical and labelled as such.
Both, depending on the plant. VETRA sits above the OEM device controllers as the plant master; each OEM controller keeps executing on its own equipment. Where a legacy or end-of-life plant SCADA exists, we migrate it to VETRA without stopping production.
Yes. Retrofit scopes are common: we build the interface list from the installed equipment, validate the control logic in simulation against a model of the plant, then commission in planned windows.
Clause by clause. GridTwin simulation proves the logic before site; site compliance tests with the system operator prove it in the field. Simulation results are never presented as field compliance.
Control and the historian run on site. Cloud aggregation through Fleet Manager is optional and passes through a DMZ; the plant keeps operating through a connectivity loss and back-fills data afterwards.
Open protocols first — SunSpec Modbus, Modbus TCP/RTU, IEC 61850, IEC 60870-5-104, DNP3, OPC UA, MQTT, CANbus and J1939 — with a driver library of 73 devices and new drivers added per project. Compatibility with a specific model is confirmed during engineering and recorded in the project register.
A controlled documentation package: functional design specification, I/O and tag database, interface and communication matrices, network and cybersecurity architecture, simulation, FAT and SAT records, grid-compliance report, as-built drawings, configuration baseline, manuals and training records.
Remote-first Level 1 and Level 2 support from Port Harcourt through the Support Portal, Remote Operations Centre supervision, and preventive and corrective maintenance. Response and resolution targets are stated in each service agreement.
Yes. Operator and engineer training runs on the live hybrid plant at LPK-PH-TRN-01 in Port Harcourt, and project-specific training is part of every handover.
Lapomik Energy Group is an integrated renewables, gas, digital energy and technical training group with the ambition to be a world-class energy company that competes regionally and, in time, globally.
Full leadership team in Team and advisory board.
Profiles are published with verified biographies and each person's consent. Positions shown without a name are open or awaiting publication.
Leads group strategy, SCADA/PPC/EMS engineering and the VETRA platform, with more than nine years of control-system commissioning experience.
PhD-qualified power systems and control engineer.
Electrical engineer leading SCADA, PPC and EMS delivery.
Technical support and IT systems engineering.
Administration and business support.
Profile to be published.
Grid-code compliance, utility interconnection and regulatory engagement.
Structuring, bankability and lender reporting for hybrid and mini-grid portfolios.
CNG supply, safety and station operations.
OT security, data platforms and AI governance.
To propose an advisor or apply for an open role, write to info@lapomikenergy.com.
Tell us what the plant, the fleet or the portfolio needs to do. We reply with questions before we reply with prices — then a site survey, product selection and a project datasheet with quotation within five working days.
Occasional engineering notes and product updates from Lapomik Energy. No marketing noise.
Emergency support for contracted sites uses the escalation numbers in your service agreement, not this form.
Engineering depth
Lapomik combines real-time SCADA, hybrid EMS/PPC, simulation, commissioning and analytics in one engineering workflow. The result is a control layer designed around the plant rather than a single equipment vendor.
